Creating custom page sizes for your printer can be essential for specific printing tasks that require non-standard dimensions. Follow this guide to set up custom page sizes

Step-by-Step Guide

Step 1: Access Print Server Settings

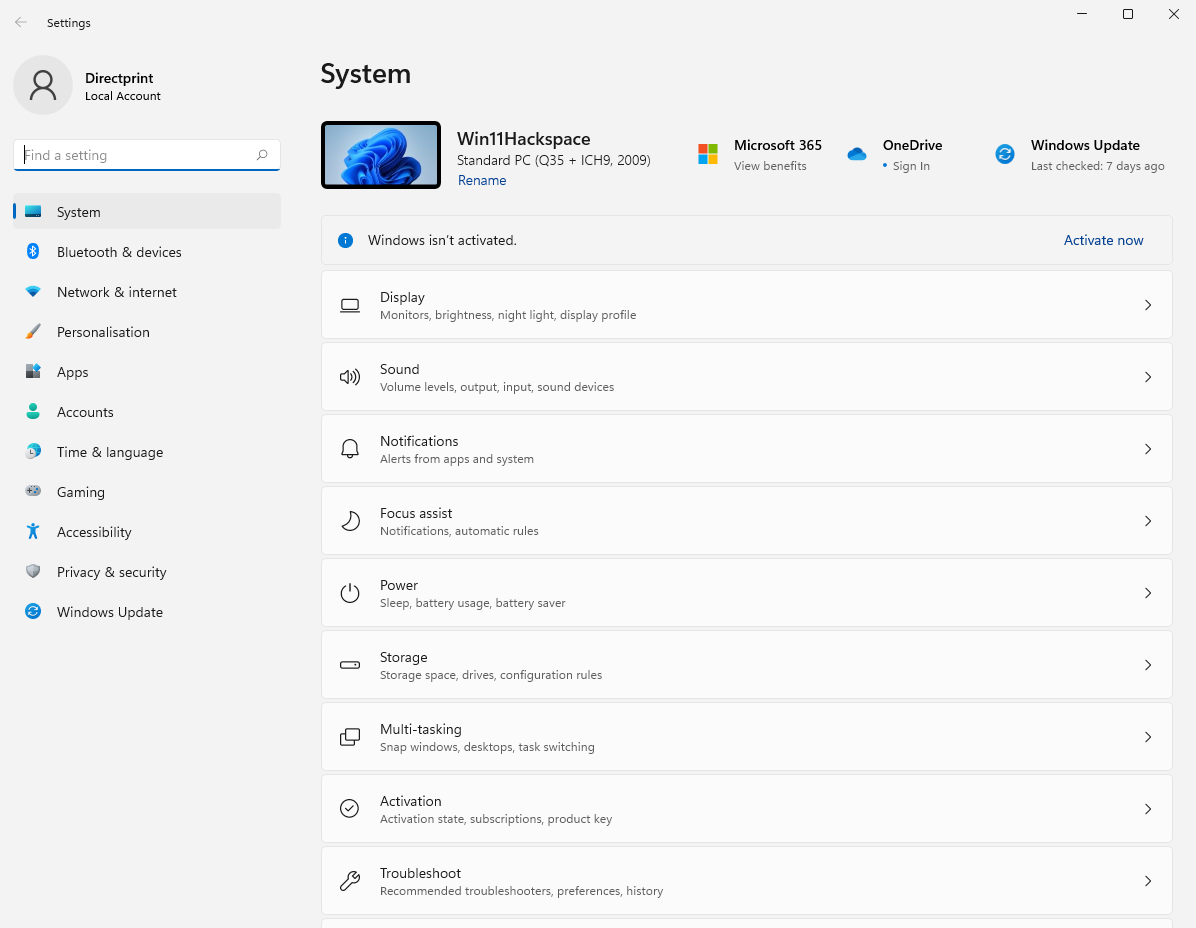

1. Open the Settings App:

   • Click on the Start button and select Settings (the gear icon).
   • Alternatively, press Windows + I to open the Settings app directly.

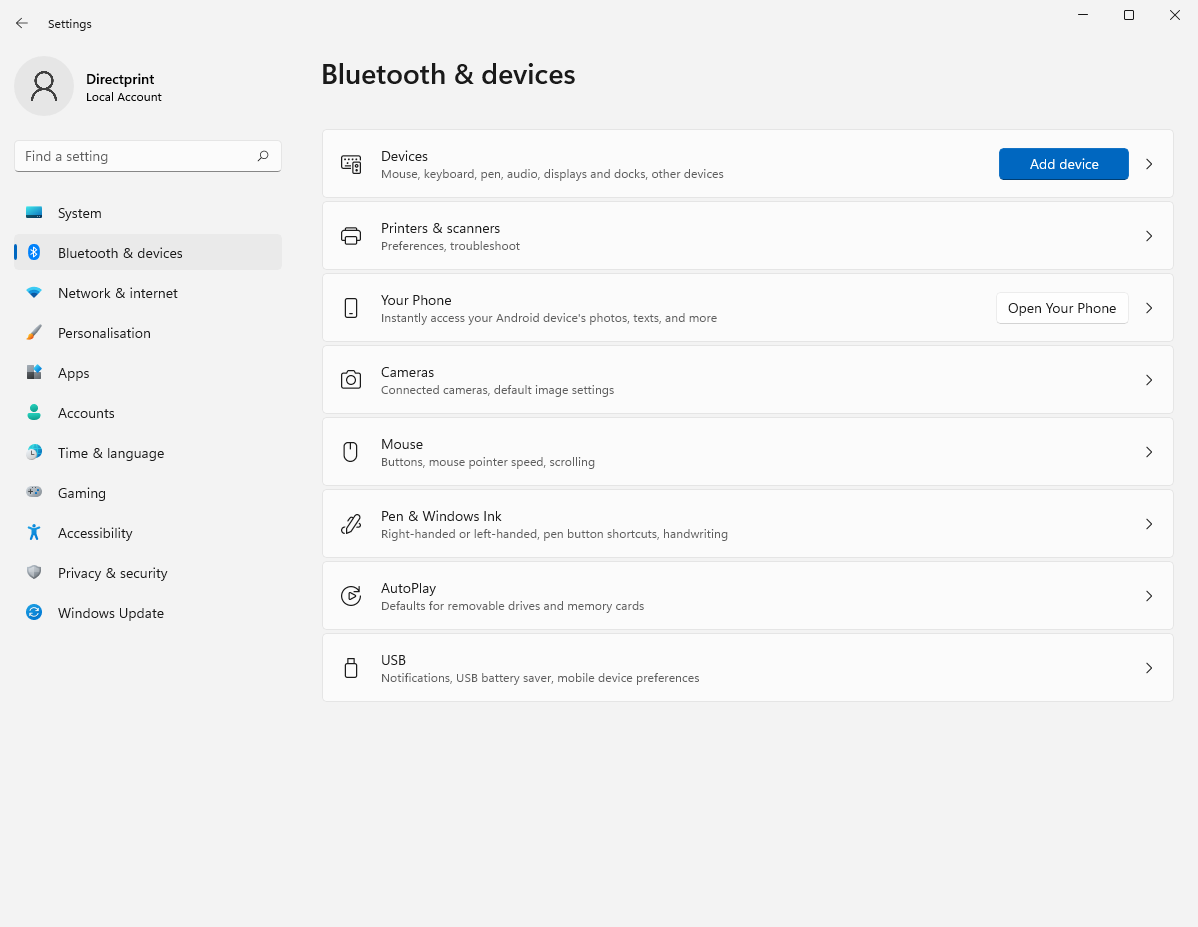

2. Navigate to Bluetooth & devices:

   • In the Settings window, select Bluetooth & devices from the left-hand menu.

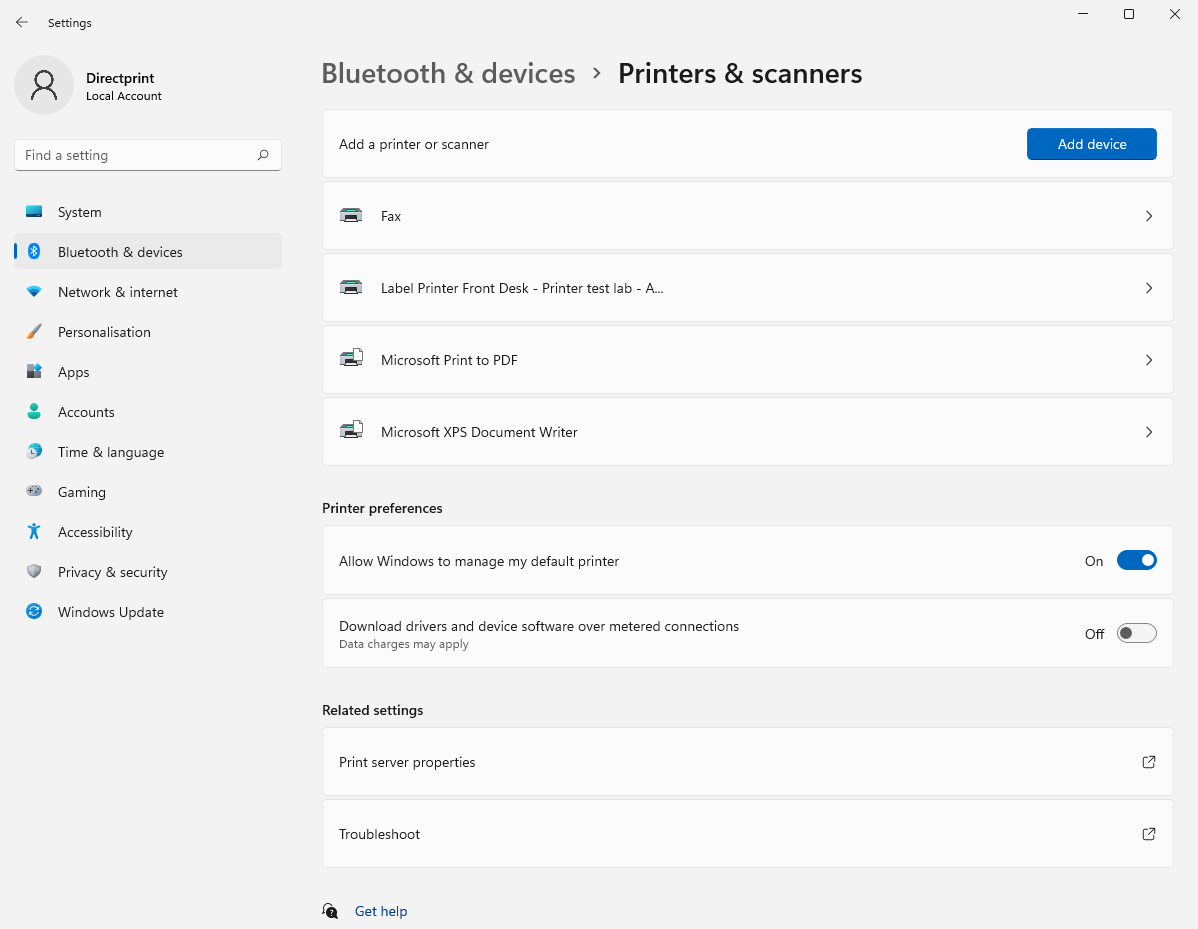

3. Go to Printers & scanners:

   • Click on Printers & scanners in the Bluetooth & devices section.



4. Open Print Server Properties:

   • Scroll down and click on Print server properties under Related settings.

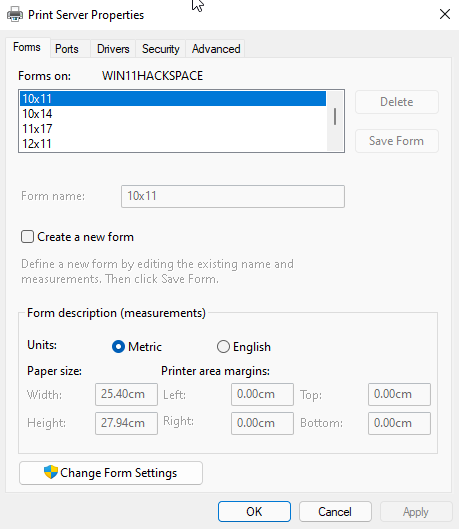

Step 2: Create a New Form (Custom Page Size)

1. Create a New Form:

   • Check the box that says Create a new form.
   • Enter a name for your custom form in the Form name field (e.g., Custom Size 1).



2. Set Custom Dimensions:

   • Enter the desired dimensions for your custom page size in the Form description (measurements) section.
     • Units: Ensure that the correct units (inches or millimeters) are selected.
     • Width: Enter the width of the custom page size.
     • Height: Enter the height of the custom page size.



3. Save the Custom Form:

   • Click Apply to add the new custom form to the list of available paper sizes.



Step 3: Apply the Custom Page Size to a Printer

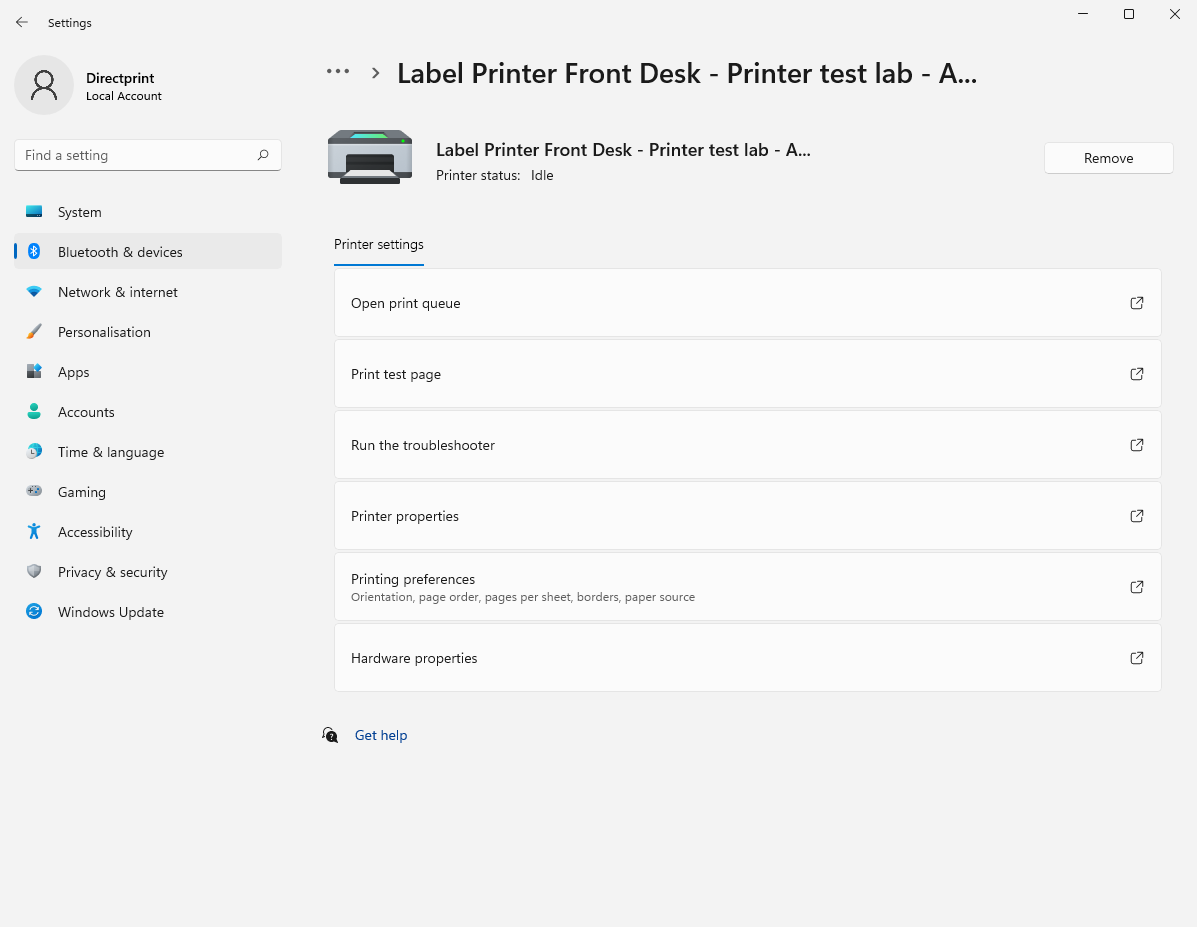

1. Select the Printer:

   • Go back to the Printers & scanners settings and select the printer you want to apply the custom page size to.

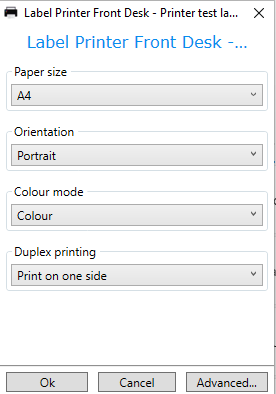

2. Open Printer Preferences:

   • Click on Printing preferences to open the Printing Preferences window.

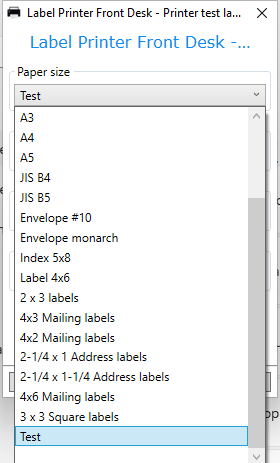

3. Set the Custom Page Size:

   • In the Printing Preferences window, go to the Paper Size.
   • Choose your custom page size from the Paper Size dropdown menu.



4. Apply and Save:

   • Click OK to save the changes.



Step 4: Test the Custom Page Size

1. Print a Test Page:

   • Open a document or an image you wish to print.
   • Go to File > Print and ensure that the custom page size is selected.
   • Print a test page to verify that the custom size works as expected
